cadastral data


Land Services SA provides the most up to date South Australian Parcel Cadastre Maps and data, that can be further augmented with our property information.  Leverage the most up to date cadastre maps for land administration, mapping and spatial analysis purposes.


Extend your research and planning by adding layers of relevant and up to date property data to cadastre. Join other top tier users who no longer settle for a basic cadastre and discover where the additional data can take you.

Why Land Services Cadastral Data?

  • The only South Australian parcel cadastre that is updated daily.
  • Select from hundreds of property attributes from our comprehensive data catalogue to add to your cadastre.
  • Come direct to the source of SA's property data.

How can you leverage our data....

  • Assess potential sites for renewable energy projects.
  • Planning and infrastructure projects.
  • Notification to land holders of mining exploration works.
  • Surveying projects and fieldwork preparation.
  • Update client GIS platform.
  • Consulting for new projects.

Cadastre

Our Parcel Cadastre Data can be produced for any specific geographic area of interest, or for the whole of South Australia.  One off requests, ongoing supply and refreshed data are available, whichever best meets your project requirements.

The data attributes included in our base cadastre data set are listed below. We also offer clients the advantage of including additional data attributes from our extensive range of property date. View the Land Services Data Catalogue understand the additional data attributes that can be mapped on your cadastre.

Please view our Parcel Cadastre Data Dictionary here for further assistance on selecting your attributes.

Standard Data Attributes

Data field

Description

Plan_T

Plan type

Plan type code (i.e.D = Deposited Plan, F = File Plan, S = Strata Plan, C = Community Plan, H = Hundred Plan)

Plan

Plan Number

Alpha/numeric Plan number (i.e 1234)

Parcel_T

Parcel Type

Parcel type code (i.e. A = Allotment, S = Section, Q = Piece, B = Block)

Parcel-Subtype

Subtype of the parcel

This field indicates the type of parcel (i.e. AL = Allotment, AR = Allotment (Road), QP = Piece, BL = Block)

Parcel

Parcel Number

Title_T

Type of title. i.e.CL Crown Lease, CT Certificate of Title, CR – Crown record

Volume

Title Volume

Folio

Title Folio

Qualifier

When title fields are populated this field indicates that there is more than one title with ¿+titles¿, otherwise field left blank

Floor_Level

Floor level of the parcel extracted from the plan.  Where a parcel spreads over more than one floor, there will be more be more than one record.

Date-From

Creation date of the parcel.

Parcel_Id

Id of the parcel in a format with space between the plan and the parcel.

Accuracy_code

The accuracy of each boundary corner is described by an accuracy code.  The code ranges from 0 to 7 (improved accuracy is reflected by descending number). On digital output, this accuracy code is attached to other feature types (e.g.polygons). These coordinate values have been derived by computation using plan measurements and tertiary network survey marks for control.

Improved

This field indicates parcels that have been spatially improved.

DCDBID

Parcel Identifier, concatenation of PLAN_T, PLAN, PARCEL_T and PLAN values. In the form of D12345A67

Planparcel

New Parcel ID field including the additional character for the Parcel Type

Shape_Length

Circumference of the shape representing the property in the cadastre.

Shape_Area

Area of the shape representing the property in the cadastre.

Available Formats

Our Parcel Cadastre Data is easily modified to best suit your needs . We create the data, you choose the format.

  • ShapeFile
  • Geopackage
  • CAD

If you have any other specific format requirements, just ask, we're more than happy to work with you to meet your project needs.

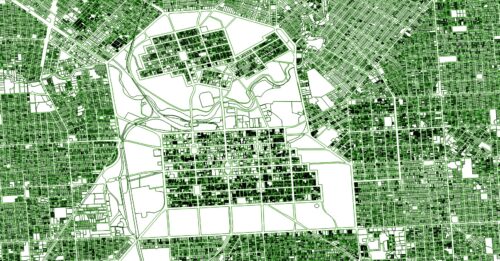

Cadastre Adelaide

Request data

Contact us at [email protected] to discuss your cadastre requirements directly.
